RTR-45
Portable automatic road trap for checkpoints and traffic control — deploys in under 1.5 seconds.
Automatic Road Trap
RTR-45
RTR-45 Automatic Road Trap; supports security forces in road control, traffic inspection applications, and security for sensitive building/area entrances with its lightweight, ergonomic, and modular design.
It is designed to withstand challenging field and usage conditions with features like remote control capability, an opening/closing time of less than 1.5 seconds, an operating temperature range of (-20)°C to (+60)°C, and reinforced Li-Ion battery technology.
The RTR-45 is widely used by security forces and law enforcement personnel, having proven itself in the field.
< 1.5 s
Opening time
4.5 m
Scissors length
50 m
Effective range
33.6 kg
Total weight
Overview
Key Features
Usage Areas
- Checkpoints
- Mobile Security Vehicles
- Traffic Control Centres
- Security Areas for Sensitive Building/Area Entrances
Data sheet
Technical Specifications
Technical Specifications
- Opening time of less than 1.5 seconds
- Closing time of less than 1.2 seconds
- Li-ion battery technology
- Operating temperature range of -20°C to +60°C
Mechanical Technology
- The device body is made of high-alloy aluminum material
- Static paint – anthracite gray

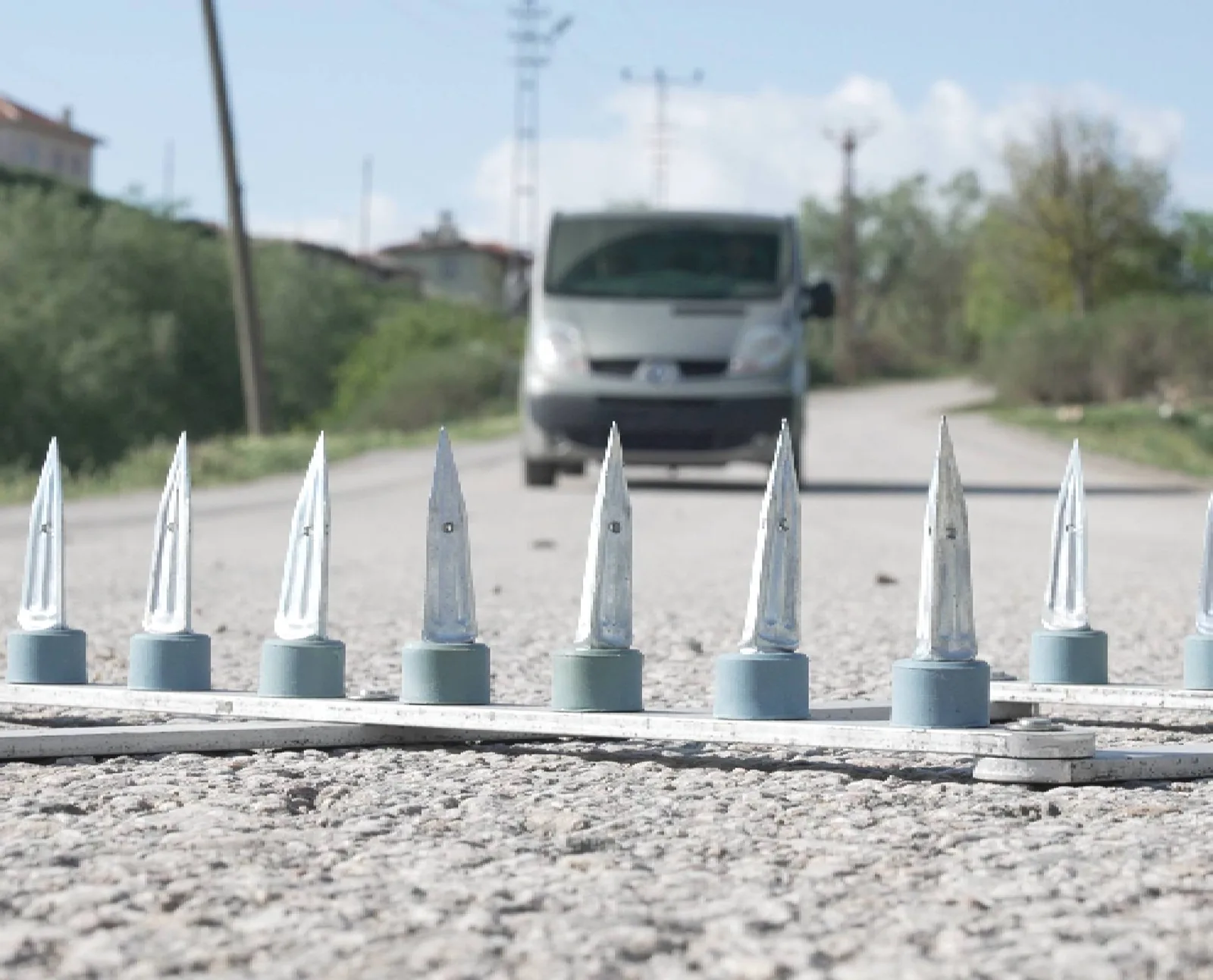

- 108 spikes on a foldable scissor system
- DC electric motor drive
- Device shear length: 4.5 meters
Control Unit
- 50-meter effective range

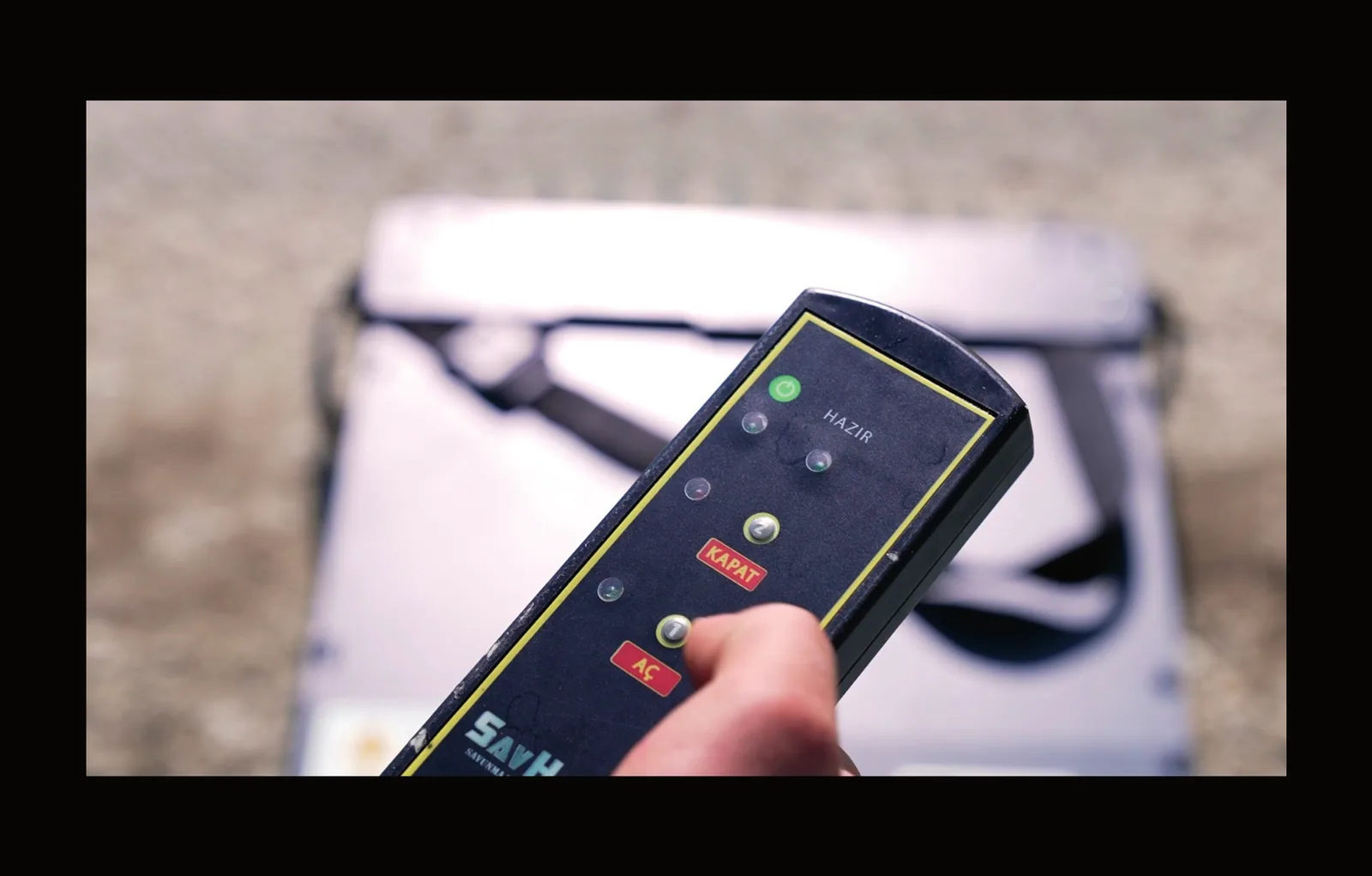

- Remote control
Electric
- Operation with 24 VDC
- 24 V14Ah battery

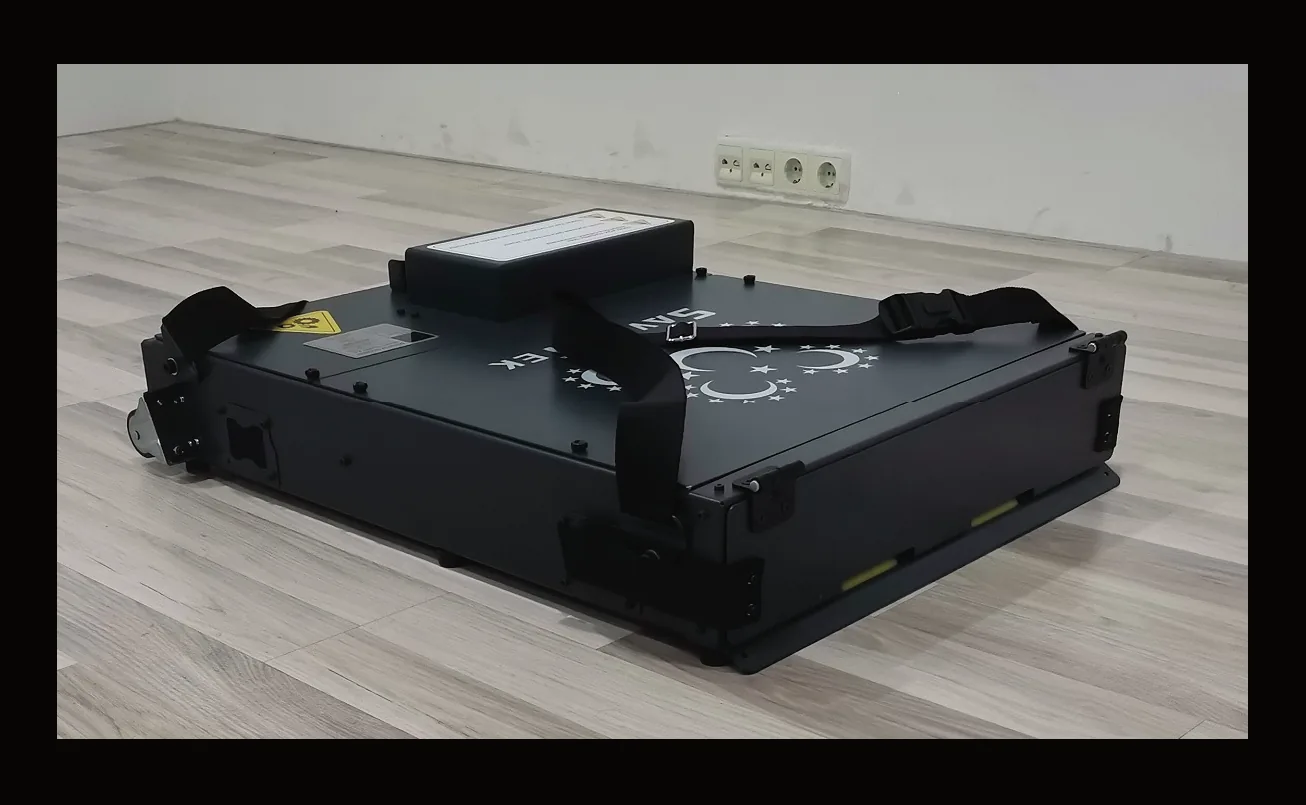

Physical Properties
- Lightweight design
- Total weight: 33.6 kg
- Length: 810 mm, Width: 610 mm, Height: 200 mm
- Front cover for security
- Easy camouflage with minimal dimensions
- Non-slip rubber feet
- 45-degree transport with two wheels
